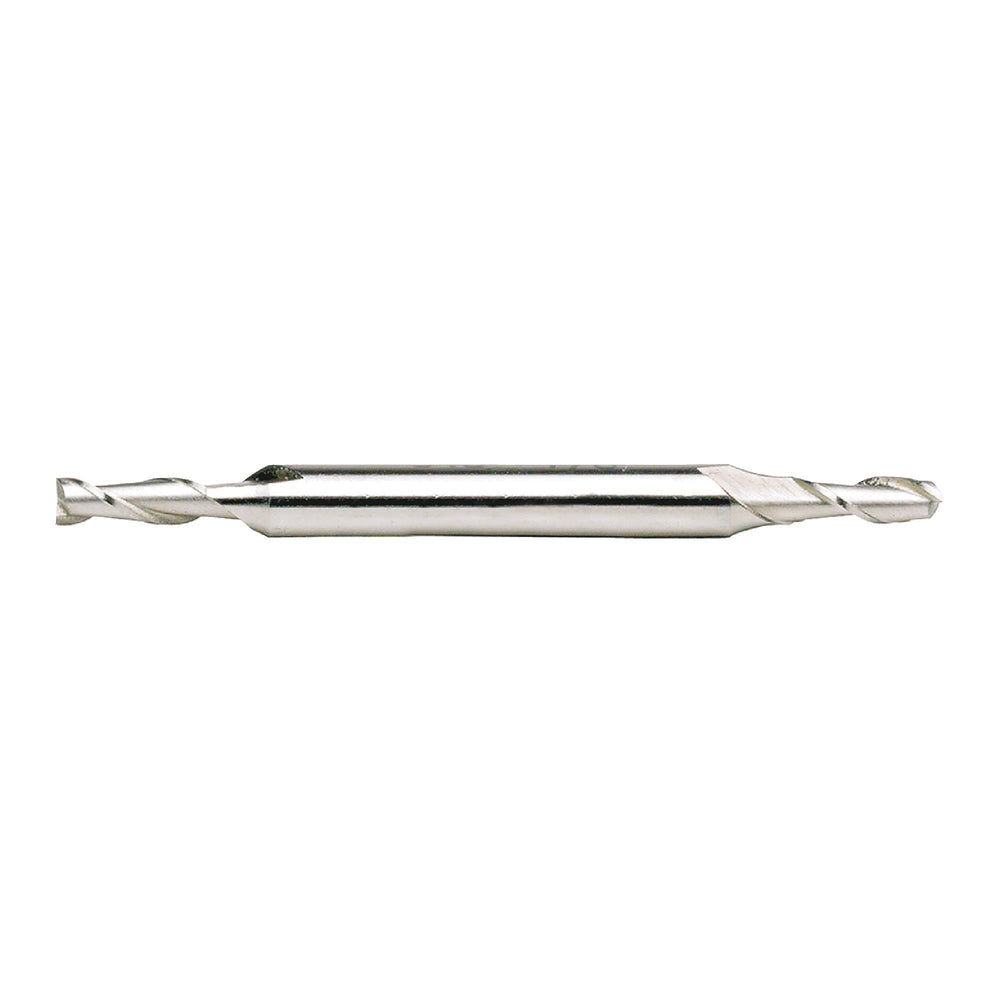

RUSHMORE USA 100609 1/32" Size, 3/32" LOC, 2 Flute, M42 8% Cobalt Miniature End Mill
by Rushmore USA
$25.58
SKU 08-098-000
| Product Specifications | |
|---|---|
| Brand | RUSHMORE USA |
| Shank Diameter | 3/16" |
| Overall Length | 2-1/4" |
| Finish Coating | Bright |
| Size Type | Fractional |
| Size | 1/32" |
| No. of Flutes | 2 |
| Length of Cut | 3/32" |
| Tool Material | M42 8% Cobalt |
| Single or Double End | Double |
| Helix Angle | 30° |
| Center Cutting | Yes |
| Type | 3/16" Shank M42 Cobalt Miniature Double End Mills |
| Corner Radius | None |
| End Type | Double End |
| Model # | 100609 |
| Flute Shape | 2 Flute |
| Length Type | Standard Length |
| Prop. 65 | Yes |
| UNSPSC | 27112803 |
| Weight | 0.01 lbs. |
| Country of Origin | UNITED STATES OF AMERICA |
WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Applications
- Well suited for use in a variety of ferrous and non-ferrous materials.
- Designed for machine tools and some portable equipment.
- General purpose tools designed for milling small slots, grooves and other smaller features.
Features
- Right hand (clockwise rotation) cutting direction.
- Spiral flute design offers faster cutting action.
- For optimal performance and the best tool life, the correct cutting speeds and feeds must be used and suitable lubricating/cutting oils or appropriate coolant fluids are recommended.
Technical Data
- Manufactured from M42 cobalt.
- Ground from the solid.
- Bright finish.
