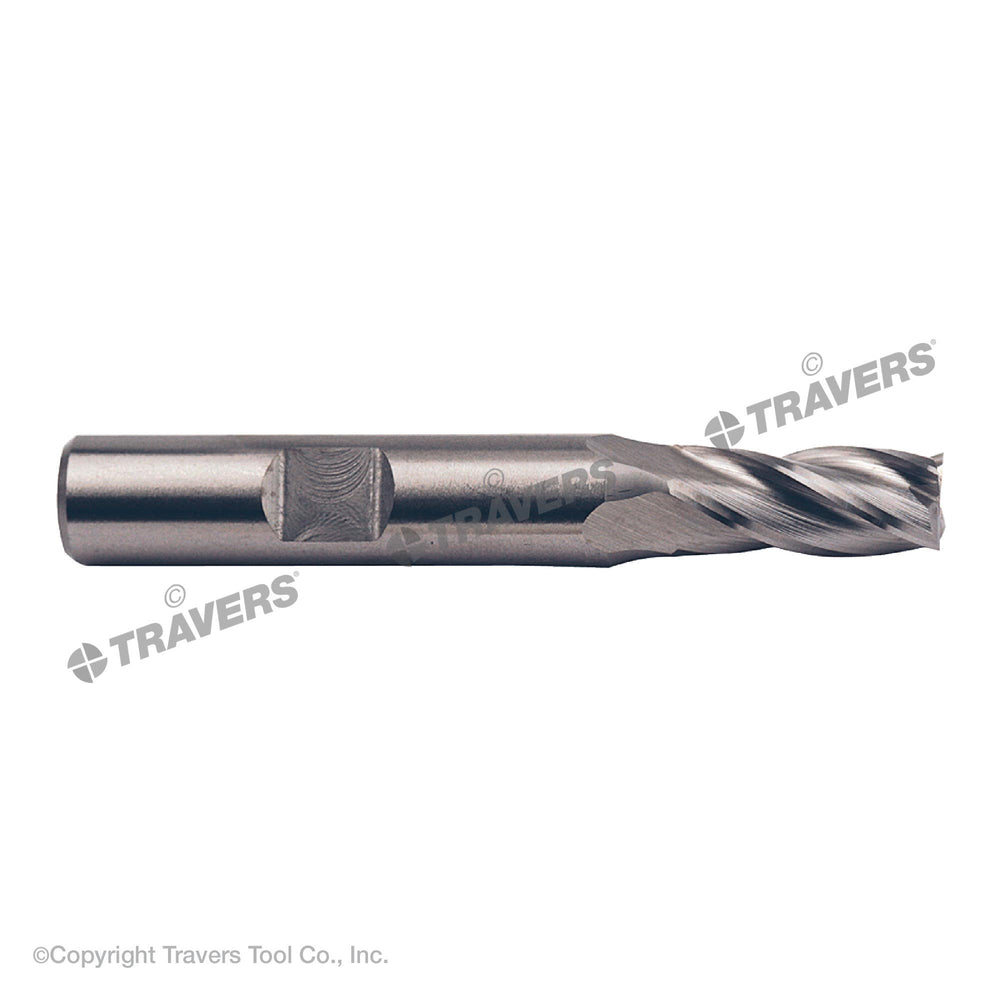

RUSHMORE USA 100356 1" Size, 2" LOC, 4 Flute, Bright High Speed Steel Finishing End Mill
by Rushmore USA
$91.18
SKU 08-025-100
| Product Specifications | |
|---|---|
| Brand | RUSHMORE USA |
| Shank Diameter | 1" |
| Overall Length | 4-1/2" |
| Finish Coating | Bright |
| Size Type | Fractional |
| Size | 1" |
| No. of Flutes | 4 |
| Length of Cut | 2" |
| Tool Material | High Speed Steel |
| Single or Double End | Single |
| Helix Angle | 30° |
| Center Cutting | Yes |
| Type | 4 Flute High Speed Steel Single End Mill |
| Corner Radius | 0 |
| End Type | Square |
| Model # | 100356 |
| Cutting Direction | Right Hand |
| Cutting End Shape | Square |
| First Choice For: | Steel |
| Flute Shape | Spiral Flute |
| Hardness | 58 to 60 RC |
| Length Type | Standard Length |
| Prop. 65 | Yes |
| Reach | 1-3/4" |
| Shank Style | Straight Shank |
| Tolerance_Cutting Diameter | +0.0015 to -0.0000" |
| UNSPSC | 27112803 |
| Weight | 0.85 lbs. |
| Workpiece Material Range | Steel, Non-Ferrous, Cast Iron, Plastics |
| Country of Origin | UNITED STATES OF AMERICA |
WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Applications
- For general milling operations for slots, grooves and other similar features.
- For pocketing, die sinking, tracer controlled and cavity milling operations.
- For use in a variety of ferrous and non-ferrous materials.
- The end cutting edges are ground to permit center cutting.
- Designed for use in machine tools.
Features
- Right hand (clockwise rotation) cutting direction.
- The spiral flute design permits a faster and smoother cutting action and the end mills are sized to provide a good cutting range while affording adequate rigidity.
