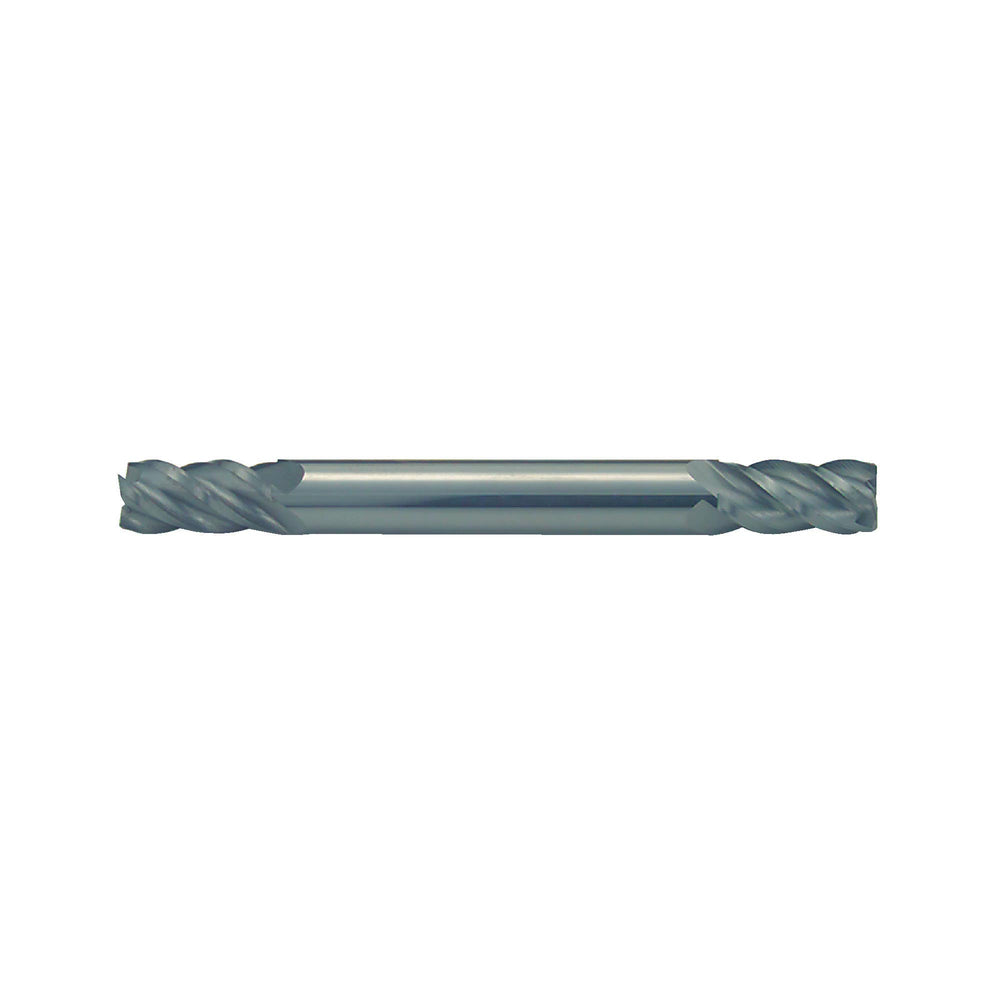

RUSHMORE USA 100327 1/16" Size, 1/8" LOC, 4 Flute, TiCN Solid Carbide Finishing End Mill
by Rushmore USA
$27.17
SKU 08-601-148
| Product Specifications | |
|---|---|
| Brand | RUSHMORE USA |
| Shank Diameter | 1/8" |
| Overall Length | 1-1/2" |
| Finish Coating | TiCN |
| Size Type | Fractional |
| Size | 1/16" |
| No. of Flutes | 4 |
| Length of Cut | 1/8" |
| Tool Material | Solid Carbide |
| Single or Double End | Double |
| Helix Angle | 30° |
| Center Cutting | Yes |
| Type | 4 Flute Stub Length Solid Carbide Double End Mill |
| Corner Radius | 0 |
| Flute Length | 1/8" |
| Model # | 100327 |
| Cutting Direction | Right Hand |
| First Choice For: | High Temp Exotic Alloys |
| Flute Shape | Helix |
| Helix Angle & Style | 30° Helix |
| Length Type | Stub Length |
| Prop. 65 | Yes |
| Tolerance_Cutting Diameter | + .000"/ - .002" |
| Tolerance_Shank Diameter | +.0000" / -.0005" |
| UNSPSC | 27112803 |
| Weight | 0.0248 lbs. |
| Workpiece Material Range | Steel, Stainless Steel, High-Temp Exotic Alloys, Non-Ferrous, Cast Iron, Hard Materials, Plastics |
| Country of Origin | UNITED STATES OF AMERICA |
WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Applications
- For most ferrous metal applications.
