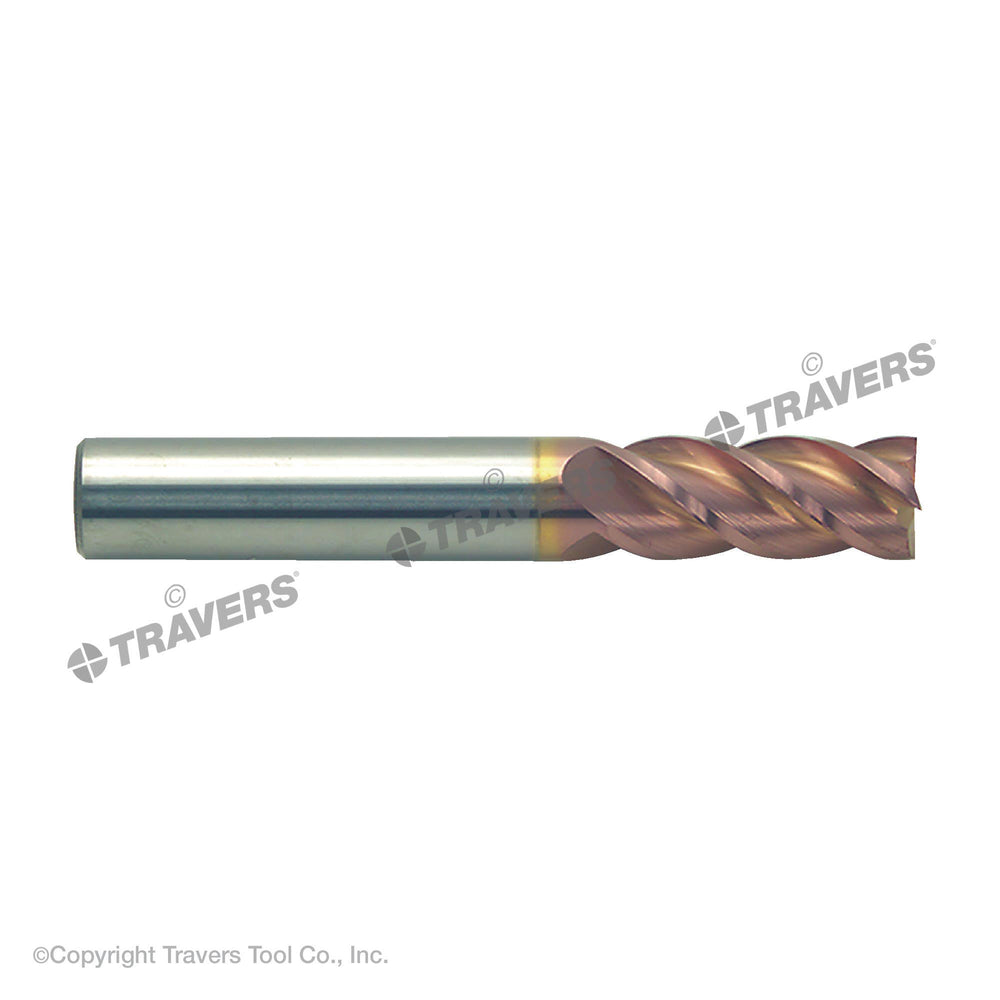

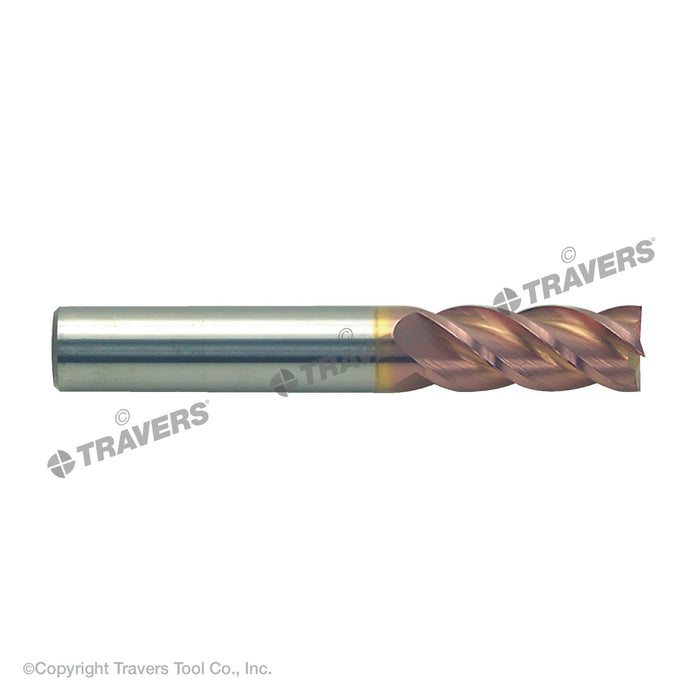

RUSHMORE USA 100276 1" Size, 1-1/2" LOC, 4 Flute, TiCN Solid Carbide Finishing End Mill
by Rushmore USA
$299.45
SKU 08-601-073
| Product Specifications | |
|---|---|
| Brand | RUSHMORE USA |
| Shank Diameter | 1" |
| Overall Length | 4" |
| Finish Coating | TiCN |
| Size Type | Fractional |
| Size | 1" |
| No. of Flutes | 4 |
| Length of Cut | 1-1/2" |
| Tool Material | Solid Carbide |
| Single or Double End | Single |
| Helix Angle | 40° |
| Center Cutting | Yes |
| Type | 4 Flute Micrograin Solid Carbide Coated Single End Mill |
| Corner Radius | 0 |
| Flute Length | 1-1/2" |
| Model # | 100276 |
| Application | Center cutting style allows for 3 axis profile milling, plunging and ramping. For profiling, slotting of stainless steel and exotic materials. |
| Cutting Direction | Right Hand |
| First Choice For: | High Temp Exotic Alloys |
| Flute Shape | Spiral Flute |
| Helix Angle & Style | 40° Helix |
| Material To Be Machined | Stainless steel and exotic materials |
| Nose Type | Square Nose |
| Prop. 65 | Yes |
| Shank Style | Straight Shank |
| Tolerance_Cutting Diameter | +.000" / -.003" |
| Tolerance_Shank Diameter | -.0000" / -.0005" |
| UNSPSC | 27112803 |
| Weight | 0.75 lbs. |
| Workpiece Material | Stainless steel and exotic materials |
| Workpiece Material Range | Steel, Stainless Steel, High-Temp Exotic Alloys, Non-Ferrous, Cast Iron, Hard Materials, Plastics |
| Country of Origin | UNITED STATES OF AMERICA |
WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Coatings allow higher speed and feed rates, offering extended tool life and increased lubricity
Applications
- Center cutting style allows for 3 axis profile milling, plunging and ramping.
- For profiling, slotting of stainless steel and exotic materials.
Features
- Maximum rigidity and feed rates.
- Manufactured from 10% cobalt premium micrograin tungsten carbide with an advanced tool geometry that will outperform conventional end mills.
