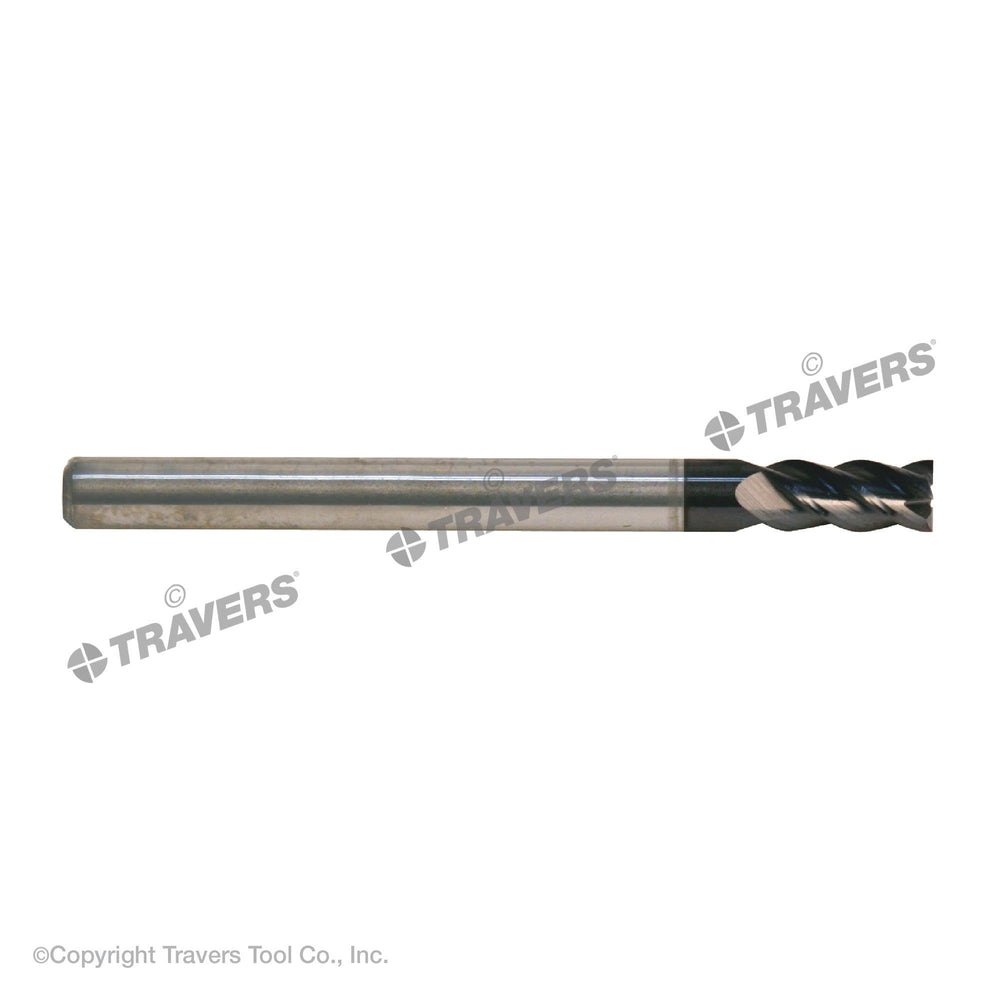

RUSHMORE USA 100206 1/2" Size, 5/8" LOC, 4 Flute, Bright Solid Carbide Finishing End Mill
by Rushmore USA
$63.42
SKU 08-600-097
| Product Specifications | |
|---|---|
| Brand | RUSHMORE USA |
| Shank Diameter | 1/2" |
| Overall Length | 2-1/2" |
| Finish Coating | Bright |
| Size Type | Fractional |
| Size | 1/2" |
| No. of Flutes | 4 |
| Length of Cut | 5/8" |
| Tool Material | Solid Carbide |
| Single or Double End | Single |
| Helix Angle | 40° |
| Center Cutting | Yes |
| Type | 4 Flute Stub Length 10% Cobalt Solid Carbide Single End Mill |
| Corner Radius | 0 |
| Flute Length | 5/8" |
| Model # | 100206 |
| Cutting Direction | Right Hand |
| First Choice For: | Non-Ferrous |
| Flute Shape | Right Hand Spiral |
| Helix Angle & Style | 40° High Helix |
| Length Type | Stub Length |
| Prop. 65 | Yes |
| Shank Style | Straight Shank |
| UNSPSC | 27112803 |
| Weight | 0.25 lbs. |
| Workpiece Material Range | Steel, Stainless Steel, High-Temp Exotic Alloys, Non-Ferrous, Cast Iron, Hard Materials, Plastics |
| Country of Origin | UNITED STATES OF AMERICA |
WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Lower cost than regular length
Benefits
- 10% cobalt offers high heat protection.
Applications
- For use on ferrous and non-ferrous materials.
- Chip ejection is greatly improved and allows use of higher feeds and speeds on stainless steel and heat-treated materials.
Features
- Provides a higher shearing action with superb workpiece finish.
- Higher rake and helix.
- Center cutting to allow for 3 axis profile milling, plunging and ramping.
