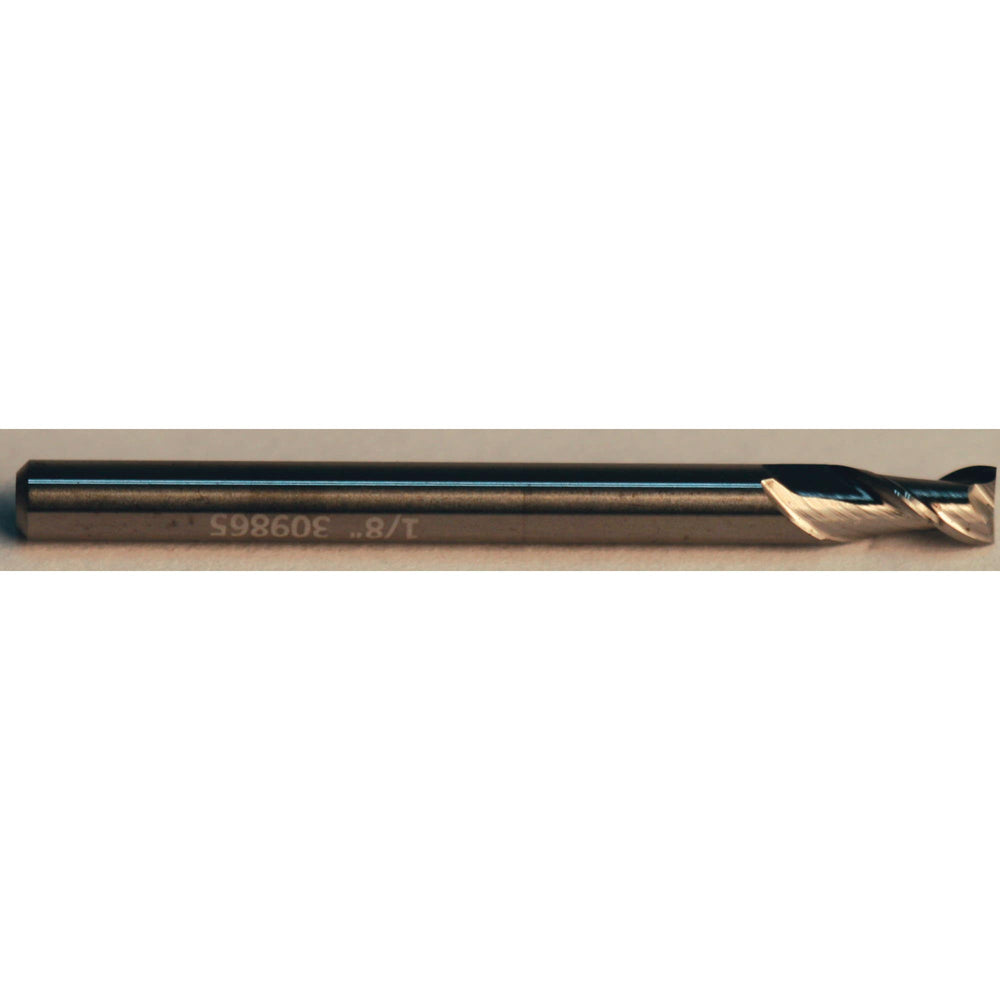

RUSHMORE USA 100193 1/8" Size, 1/4" LOC, 2 Flute, Solid Carbide 2 Flute Finishing End Mill
by Rushmore USA
$12.03 USD
SKU 08-600-076
| Product Specifications | |
|---|---|
| Brand | RUSHMORE USA |
| Shank Diameter | 1/8" |
| Overall Length | 1-1/2" |
| Finish Coating | Bright |
| Size Type | Fractional |
| Size | 1/8" |
| No. of Flutes | 2 |
| Length of Cut | 1/4" |
| Tool Material | Solid Carbide |
| Single or Double End | Single |
| Helix Angle | 40° |
| Center Cutting | Yes |
| Type | 2 Flute Stub Length 10% Cobalt Solid Carbide Single End Mill |
| Model # | 100193 |
| Cutting Direction | Right Hand |
| First Choice For: | Steel |
| Flute Shape | Right Hand Spiral |
| Length Type | Stub Length |
| Prop. 65 | Yes |
| Shank Style | Straight Shank |
| UNSPSC | 27112803 |
| Weight | 1.3 lbs. |
| Workpiece Material Range | Steel, Stainless Steel, High-Temp Exotic Alloys, Non-Ferrous, Cast Iron, Hard Materials, Plastics |
| Country of Origin | UNITED STATES OF AMERICA |
WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Lower cost than regular length
Benefits
- 10% cobalt offers high heat protection.
Applications
- For use on ferrous and non-ferrous materials.
- Chip ejection is greatly improved and allows use of higher feeds and speeds on stainless steel and heat-treated materials.
Features
- Provides a higher shearing action with superb workpiece finish.
- Higher rake and helix.
- Center cutting to allow for 3 axis profile milling, plunging and ramping.
