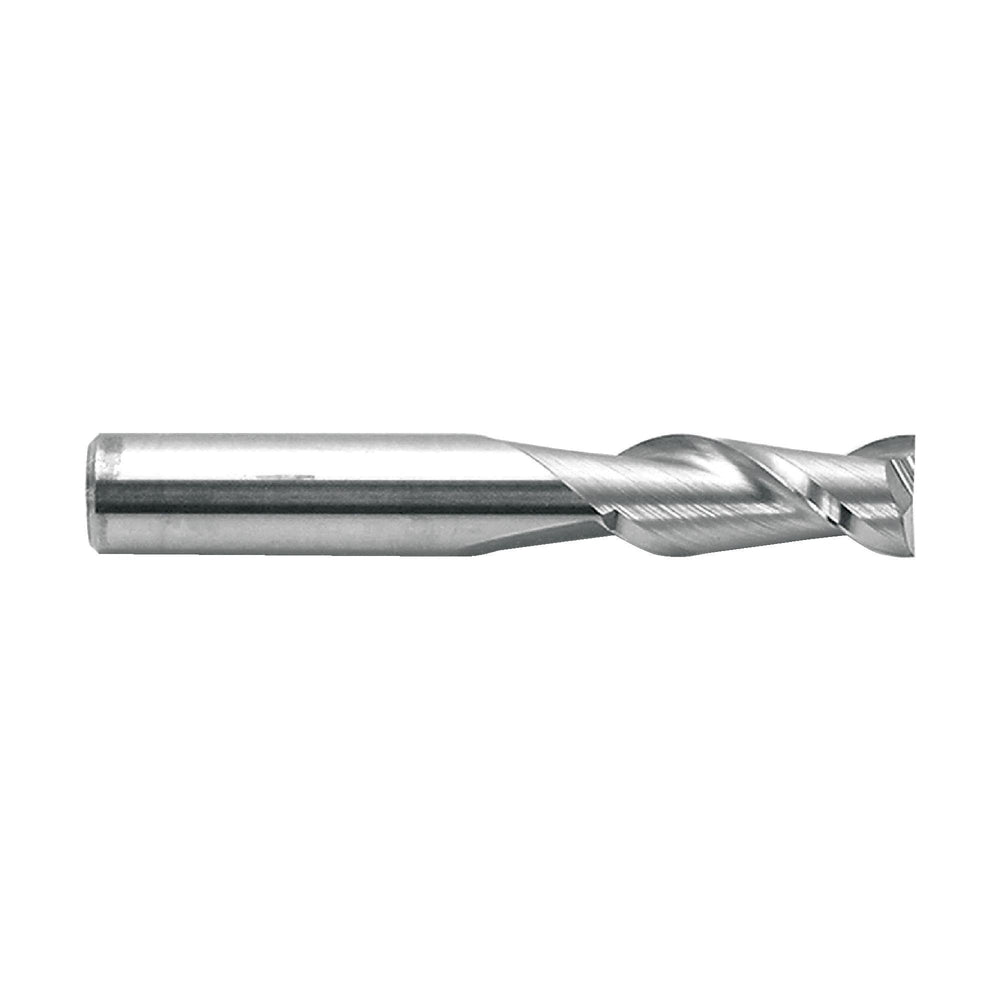

RUSHMORE USA 100159 1/2" Size, 1" LOC, 2 Flute, Solid Carbide 2 Flute Finishing End Mill
by Rushmore USA
$59.74 USD
SKU 08-600-030
| Product Specifications | |
|---|---|
| Brand | RUSHMORE USA |
| Shank Diameter | 1/2" |
| Overall Length | 3" |
| Finish Coating | Bright |
| Size Type | Fractional |
| Size | 1/2" |
| No. of Flutes | 2 |
| Length of Cut | 1" |
| Tool Material | Solid Carbide |
| Single or Double End | Single |
| Helix Angle | 40° |
| Center Cutting | Yes |
| Type | 2 Flute Micrograin Solid Carbide Single End Mill |
| Model # | 100159 |
| Cutting Direction | Right Hand |
| First Choice For: | Steel |
| Flute Shape | Spiral Flute |
| Prop. 65 | Yes |
| Shank Style | Straight Shank |
| TIR Maximum | .005" |
| Tolerance_Cutting Diameter | +.000" / -.003" |
| Tolerance_Shank Diameter | -.0000" / -.0005" |
| UNSPSC | 27112803 |
| Weight | 0.7 lbs. |
| Workpiece Material Range | Steel, Stainless Steel, High-Temp Exotic Alloys, Non-Ferrous, Cast Iron, Hard Materials, Plastics |
| Country of Origin | UNITED STATES OF AMERICA |
WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Applications
- Center cutting to allow for 3 axis profile milling, plunging & ramping.
- For use on ferrous and non-ferrous materials
Features
- Provides a higher shearing action with superb workpiece finish.
- Chip ejection is greatly improved and allows use of higher feeds and speeds on stainless steel and heat-treated materials.
- Higher rake and helix.
