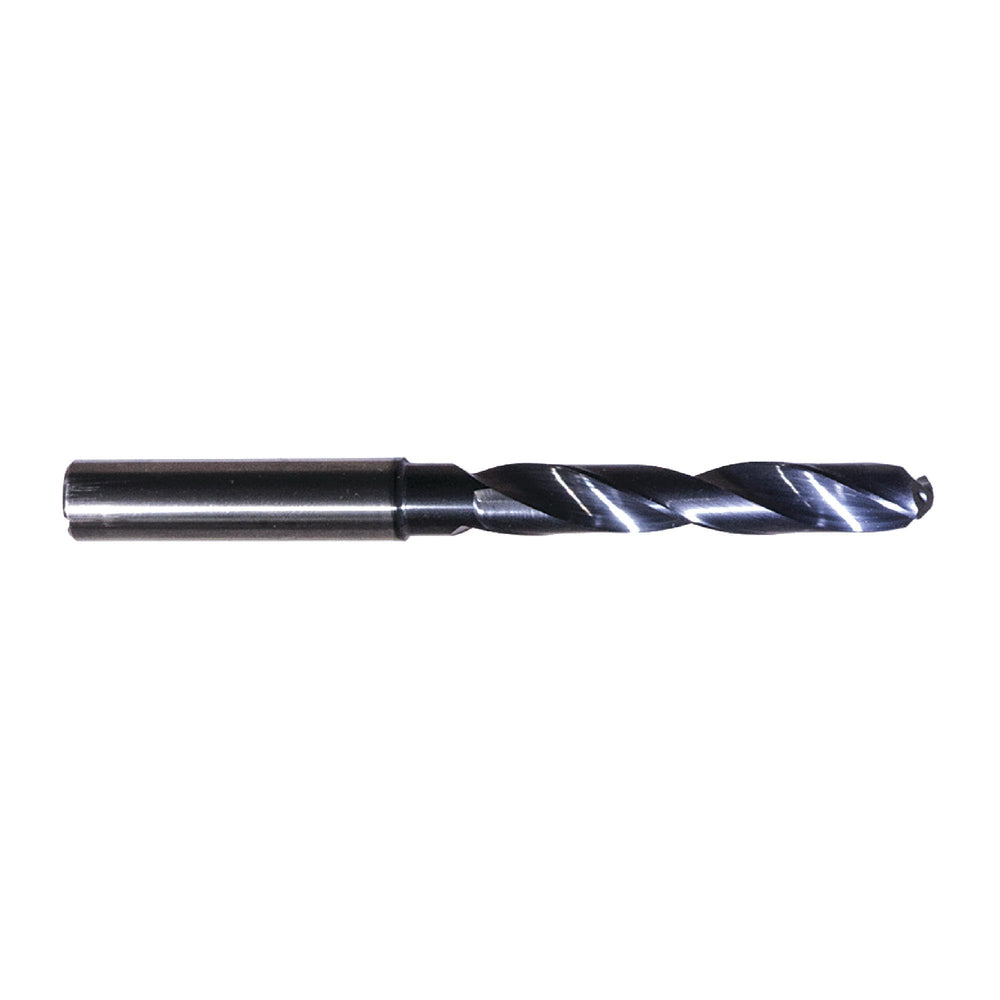

RUSHMORE USA 102584 .4606" 140° 6.370" OAL Solid Carbide Coolant Fed Drill

$281.63 USD
SKU 20-143-507
Product Specifications
Brand RUSHMORE USA
Size Type Decimal
Size .4606"
Drill Point Angle 140°
Tool Material Solid Carbide
Finish Coating AlTiN
Shank Diameter 12.00mm
Overall Length 6.370"
Type 8XD
Morse Taper None
Flute Length 4.488"
Cutting Direction Right Hand
Model # 102584
Helix Angle 30°
Decimal Size 0.4606"
Drill Type Coolant Fed
Flute Shape Helical
General Application Holemaking
Hole Depth 8XD
No. of Flutes 2
Prop. 65 Yes
Shank Style Straight Shank
Single or Double End Single
Tolerance_Cutting Diameter +.0009" / +.0003"
Tolerance_Overall Length +/-.060"
Tolerance_Shank +.0000" / -.0004"
Weight 0.466 lbs.
Workpiece Material Hardened, Cast Iron, Titanium, Non-Ferrous, Stainless Steel & Steel
Country of Origin UNITED STATES OF AMERICA
Shipping Restrictions UPS Ship (drop ship item)

Prop 65 Warning

WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov

Rigid design for fast feed rates

Benefits

  • Installed K-land eliminates the need to hone this tool.
  • Excellent self-centering capabilities and produces holes with very little in the way of either top-side or egress burrs.
  • Consistant high-performing drill for a variety of materials.

Applications

  • Excellent broad application drill.

Features

  • 2 flutes.
  • Common plain shank.
  • Supplied with K-land.
  • 30° helix.
140° Drill Point
  • Modified 4-facet with a CNC-driven S-gash.
