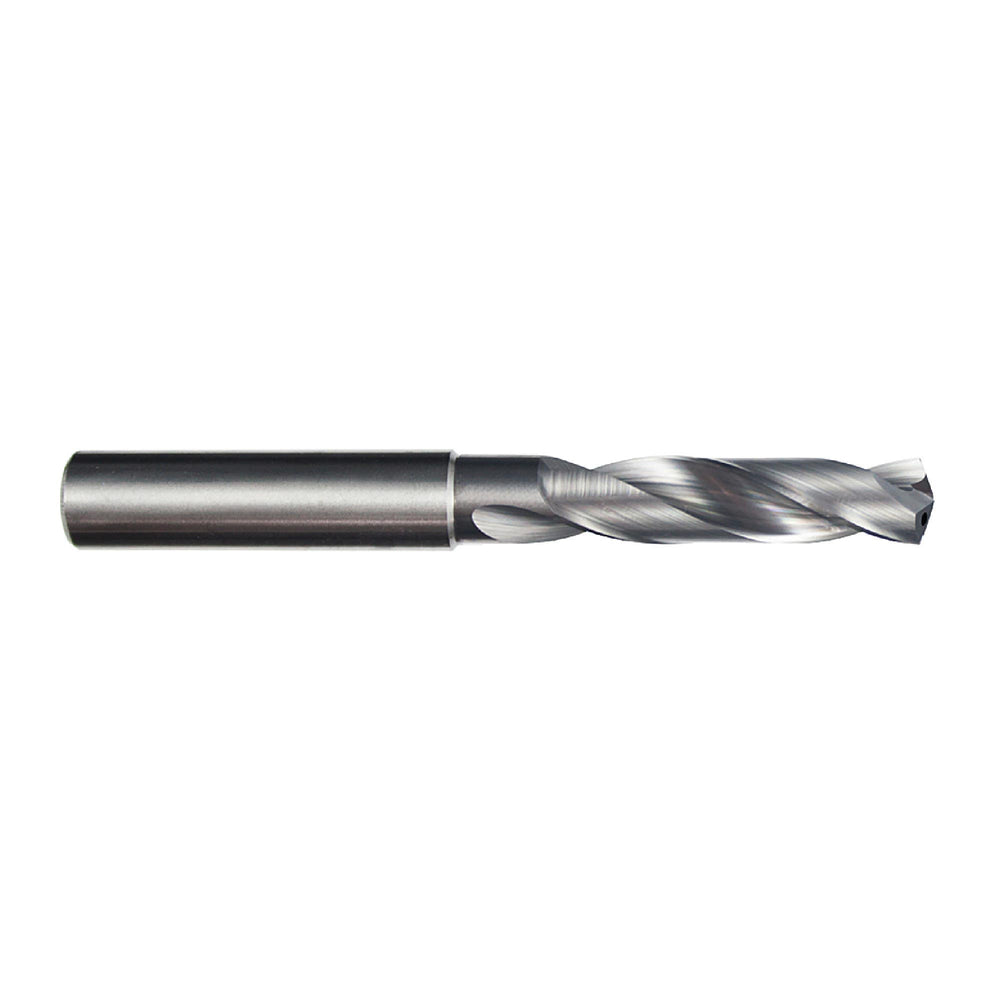

RUSHMORE USA 101822 9/32" 140° 3.110" OAL Solid Carbide Coolant Fed Drill
by Rushmore USA
$61.71 USD
SKU 20-142-112
| Product Specifications | |
|---|---|
| Brand | RUSHMORE USA |
| Size Type | Fractional |
| Size | 9/32" |
| Drill Point Angle | 140° |
| Tool Material | Solid Carbide |
| Finish Coating | Bright |
| Shank Diameter | 8.00mm |
| Overall Length | 3.110" |
| Type | 3XD |
| Flute Length | 1.614" |
| Cutting Direction | Right Hand |
| Model # | 101822 |
| Helix Angle | 30° |
| Decimal Size | 0.2813" |
| Drill Type | Coolant Fed |
| Flute Shape | Helical |
| General Application | Holemaking |
| Hole Depth | 3XD |
| Must Buy | Must Buy 2 Pcs. |
| No. of Flutes | 2 |
| Prop. 65 | Yes |
| Shank Style | Straight Shank |
| Single or Double End | Single |
| Tolerance_Cutting Diameter | +.0008" / +.0002" |
| Tolerance_Overall Length | +/-.060" |
| Tolerance_Shank | +.0000" / -.0003" |
| Weight | 0.094 lbs. |
| Workpiece Material | Hardened, Cast Iron, Titanium, Non-Ferrous, Stainless Steel & Steel |
| Country of Origin | UNITED STATES OF AMERICA |
| Shipping Restrictions | UPS Ship (drop ship item) |
WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Rigid design for fast feed rates
Benefits
- Installed K-land eliminates the need to hone this tool.
- Excellent self-centering capabilities and produces holes with very little in the way of either top-side or egress burrs.
- Consistent high-performing drill for a variety of materials.
Applications
- Excellent broad application drill.
Features
- 2 flutes.
- Common plain shank.
- Supplied with K-land.
- 30° helix.
140° Drill Point
- Modified 4-facet with a CNC-driven S-gash.
