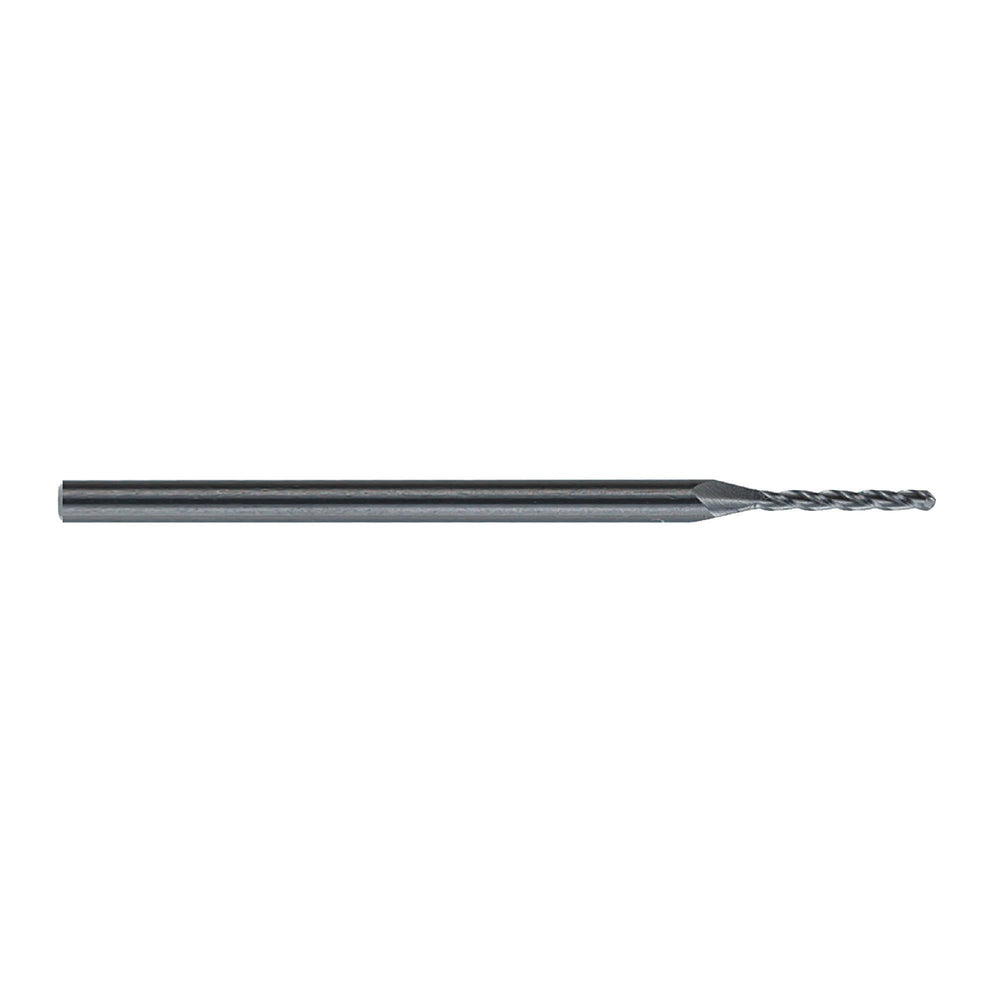

RUSHMORE USA 103463 .015" Size, .022 (1.5x) LOC, 3 Flute, Solid Carbide Ball/Miniature Combination End Mill
by Rushmore USA
$49.66 USD
SKU 20-534-125
| Product Specifications | |
|---|---|
| Brand | RUSHMORE USA |
| Shank Diameter | 1/8" |
| Overall Length | 2-1/2" |
| Finish Coating | Bright |
| Size Type | Fractional |
| Size | .015" |
| No. of Flutes | 3 |
| Length of Cut | .022 (1.5x) |
| Tool Material | Solid Carbide |
| Single or Double End | Single |
| Helix Angle | 30° |
| Center Cutting | Yes |
| Type | 3 flute ball end solid carbide end mill |
| End Type | Ball End |
| Coolant Through | No |
| Model # | 103463 |
| Application | Miniature ball end milling |
| Cutting Direction | Right Hand |
| Cutting End Shape | Ball |
| First Choice For: | Steel |
| Flute Shape | Spiral |
| Length Below Shank | 0.187 (12x) |
| Prop. 65 | Yes |
| Shank Style | Straight Shank |
| Tolerance_Cutting Diameter | +.0005" / -.0005" |
| UNSPSC | 27112803 |
| Weight | 0.02 lbs. |
| Workpiece Material | Works well on steel, stainless steel, hi temp alloys, cast iron & non-ferrous aluminum |
| Workpiece Material Range | Steel, Stainless Steel, High-Temp Exotic Alloys, Non-Ferrous, Cast Iron, Hard Materials, Plastics |
| Country of Origin | UNITED STATES OF AMERICA |
WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Superb quality at industry competitive prices
Benefits
- Rigidity and concentricity are key factors in this offering of micro tools.
- Rushmore offers a complete offering of multiple flute lengths and reaches to help you achieve the maximum optimization with our tools.
- Excels in hard to reach or deep pocket milling for maximum tool life.
Applications
Miniature ball end millingFeatures
- Made from premium sub micron grain carbide.
- 30° helix angle.
- Ball end.
