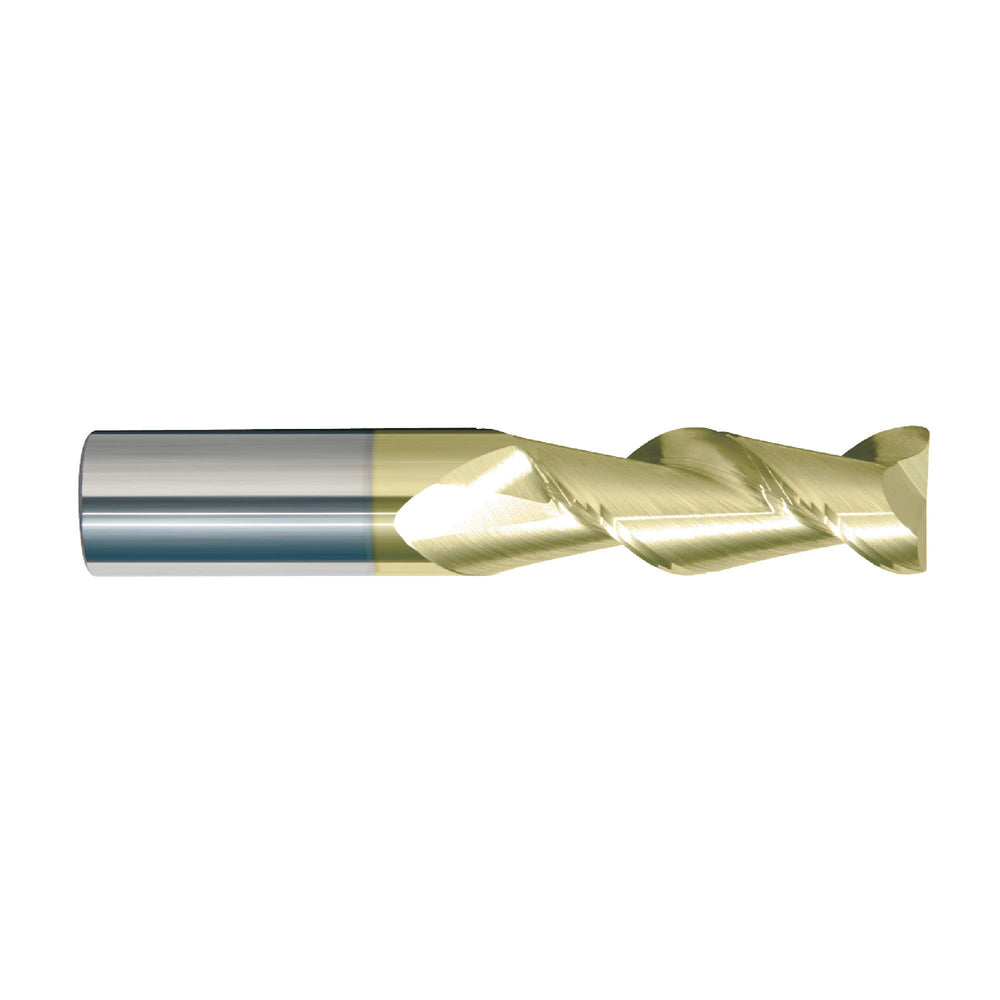

RUSHMORE USA 104932 3/8" Size, 1-3/8" LOC, 2 Flute, Solid Carbide 2 Flute Finishing End Mill
by Rushmore USA
$80.27 USD
SKU 28-000-169
| Product Specifications | |
|---|---|
| Brand | RUSHMORE USA |
| Shank Diameter | 3/8" |
| Overall Length | 3" |
| Finish Coating | ZrN |
| Size Type | Fractional |
| Size | 3/8" |
| No. of Flutes | 2 |
| Length of Cut | 1-3/8" |
| Tool Material | Solid Carbide |
| Single or Double End | Single |
| Helix Angle | 45° |
| Center Cutting | Yes |
| Type | 2 Flute Carbide Single End Mill |
| Corner Radius | .005"-.010" |
| Radius_R | .005"-.010" |
| End Type | Square |
| Model # | 104932 |
| Application | Milling non ferrous material. High performance metal removal for alumunum |
| Coating | ZrN |
| Cutting Direction | Right Hand |
| Cutting End Shape | Square |
| Cutting Length | 1-3/8" |
| D=Cutting Diameter | 3/8" |
| First Choice For: | Non-Ferrous |
| Flute Shape | Spiral Flute |
| Hardness | Non-Ferrous |
| Helix Direction | Right Hand |
| Length Type | Long Length |
| Package Qty | 1 |
| Prop. 65 | Yes |
| Tolerance_Cutting Diameter | +0.000" / 0-.002" |
| Tolerance_Shank Diameter | +0.0000" / 0-.0003" |
| Tooth Geometry | 2 Flute 45° |
| UNSPSC | 27112803 |
| Weight | .144 lbs. |
| Workpiece Material | Aluminum |
| Workpiece Material Range | Non-Ferrous |
| Country of Origin | UNITED STATES OF AMERICA |
WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
High performance machining
Benefits
- Extremely high feed rates.
- Excellent workpiece finishes.
- ZrN coating offers excellent wear resistance and increased lubricity.
Applications
Milling non ferrous material. High performance metal removal for alumunumFeatures
- C2 grade premium sub-micron carbide with 10% cobalt.
