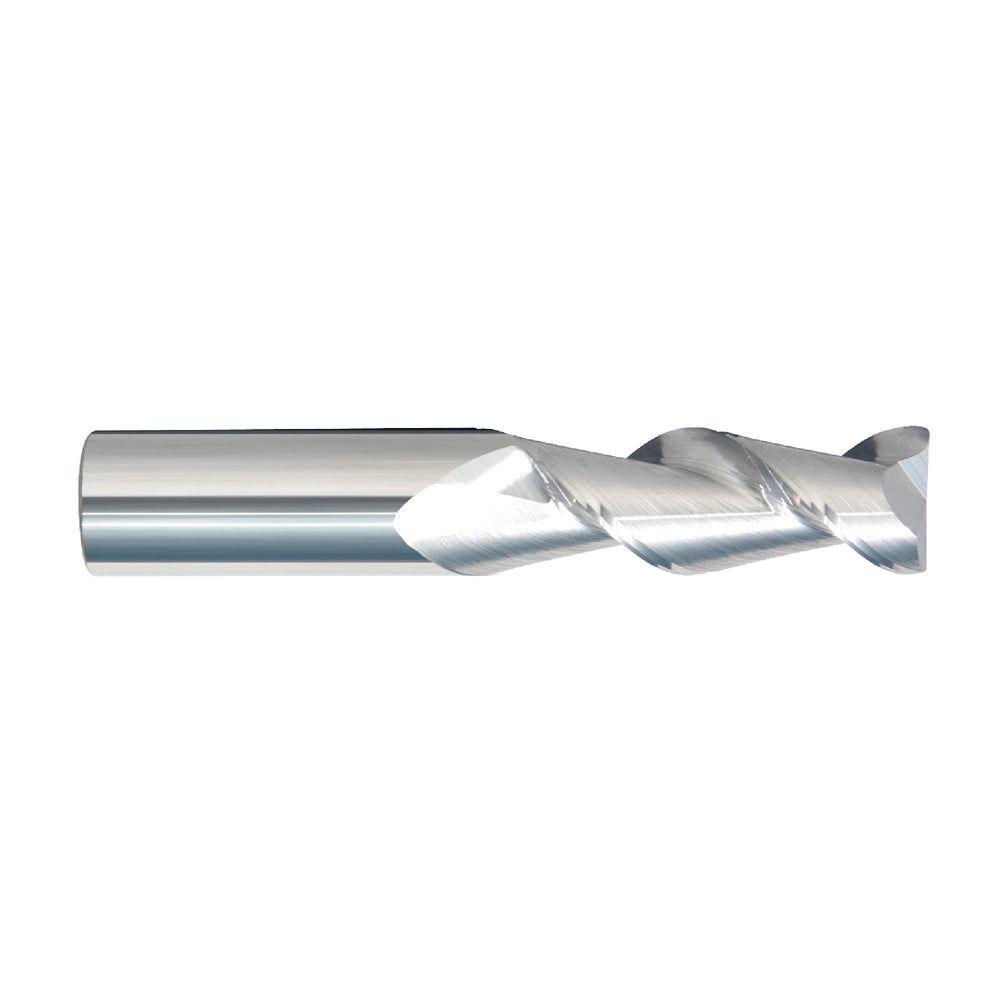

RUSHMORE USA 104909 1" Size, 1-3/4" LOC, 2 Flute, Solid Carbide 2 Flute Finishing End Mill
Product Specifications | |
---|---|
Brand | RUSHMORE USA |
Shank Diameter | 1" |
Overall Length | 4" |
Finish Coating | Bright |
Size Type | Fractional |
Size | 1" |
No. of Flutes | 2 |
Length of Cut | 1-3/4" |
Tool Material | Solid Carbide |
Single or Double End | Single |
Helix Angle | 45° |
Center Cutting | Yes |
Type | 2 Flute Carbide Single End Mill |
Corner Radius | .005"-.010" |
Radius_R | .005"-.010" |
End Type | Square |
Model # | 104909 |
Application | Milling non ferrous material. High performance metal removal for alumunum |
Coating | Uncoated |
Cutting Direction | Right Hand |
Cutting End Shape | Square |
Cutting Length | 1-3/4" |
D=Cutting Diameter | 1" |
First Choice For: | Non-Ferrous |
Flute Shape | Spiral Flute |
Hardness | Non-Ferrous |
Helix Direction | Right Hand |
Length Type | Standard Length |
Package Qty | 1 |
Prop. 65 | Yes |
Tolerance_Cutting Diameter | +0.000" / 0-.002" |
Tolerance_Shank Diameter | +0.0000" / 0-.0003" |
Tooth Geometry | 2 Flute 45° |
UNSPSC | 27112803 |
Weight | 1.365 lbs. |
Workpiece Material | Aluminum |
Workpiece Material Range | Non-Ferrous |
Country of Origin | UNITED STATES OF AMERICA |
WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Benefits
- Extremely high feed rates.
- Excellent workpiece finishes.
- ZrN coating offers excellent wear resistance and increased lubricity.
Applications
Milling non ferrous material. High performance metal removal for alumunumFeatures
- C2 grade premium sub-micron carbide with 10% cobalt.
