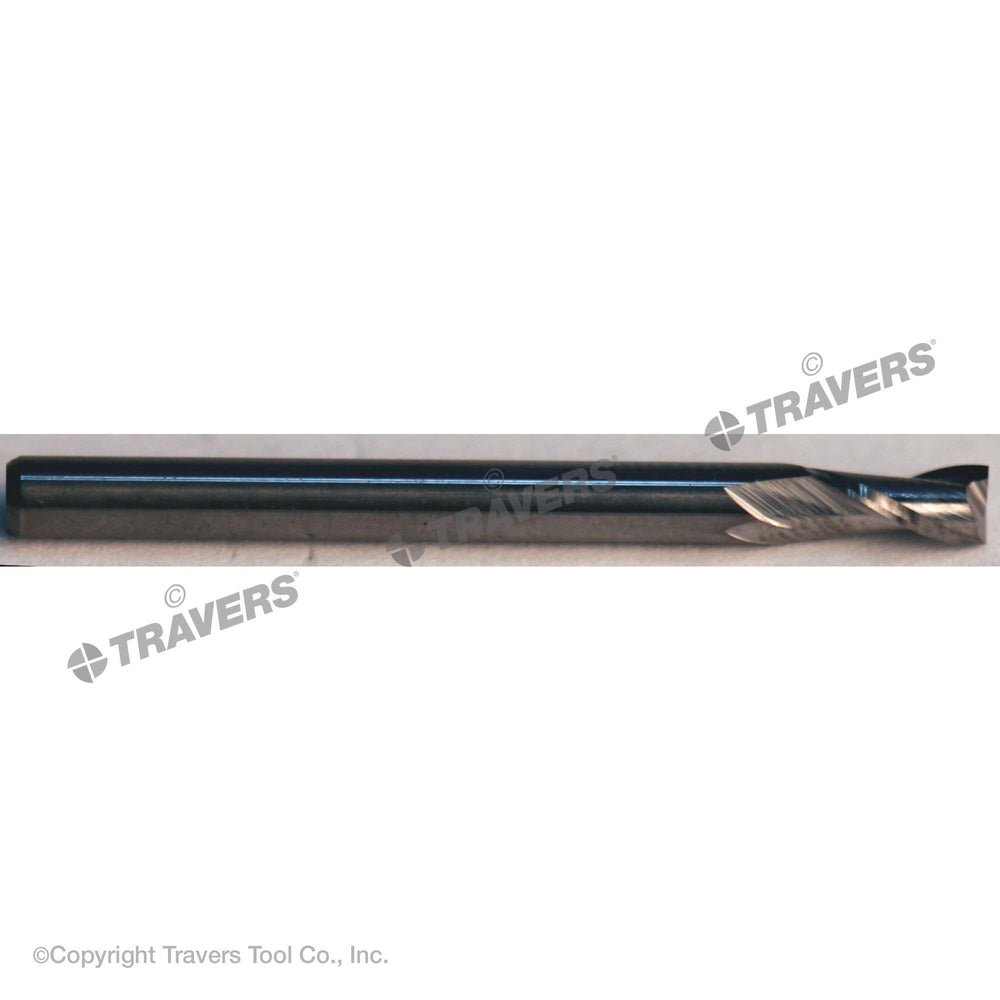

RUSHMORE USA 103189 3/4" Size, 1" LOC, 2 Flute, Solid Carbide 2 Flute Finishing End Mill
by Rushmore USA
$135.65 USD
SKU 20-513-348
| Product Specifications | |
|---|---|
| Brand | RUSHMORE USA |
| Shank Diameter | 3/4" |
| Overall Length | 3" |
| Finish Coating | Bright |
| Size Type | Fractional |
| Size | 3/4" |
| No. of Flutes | 2 |
| Length of Cut | 1" |
| Tool Material | Solid Carbide |
| Single or Double End | Single |
| Helix Angle | 30° |
| Center Cutting | Yes |
| Type | 2 Flute Stub Length Solid Carbide Single End Mill |
| Model # | 103189 |
| Cutting Direction | Right Hand |
| First Choice For: | Steel |
| Flute Shape | Right Hand Spiral |
| Length Type | Stub Length |
| Prop. 65 | Yes |
| Series | 1532 |
| Shank Style | Straight Shank |
| UNSPSC | 27112803 |
| Weight | 1.066 lbs. |
| Workpiece Material Range | Steel, Stainless Steel, High-Temp Exotic Alloys, Non-Ferrous, Cast Iron, Hard Materials, Plastics |
| Country of Origin | UNITED STATES OF AMERICA |
WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Lower cost than regular length
Applications
- For milling operations in a variety of materials.
- For high production milling of slots, pockets, and plunge cuts and similar applications for close tolerance work.
- For a full range of ferrous, non-ferrous and non-metallic materials.
2 Flute
- For milling tougher metals where their thicker webs offer maximum rigidity and greater feed rates.
4 Flute
- For milling tougher metals where their thicker webs offer maximum rigidity and greater feed rates.
