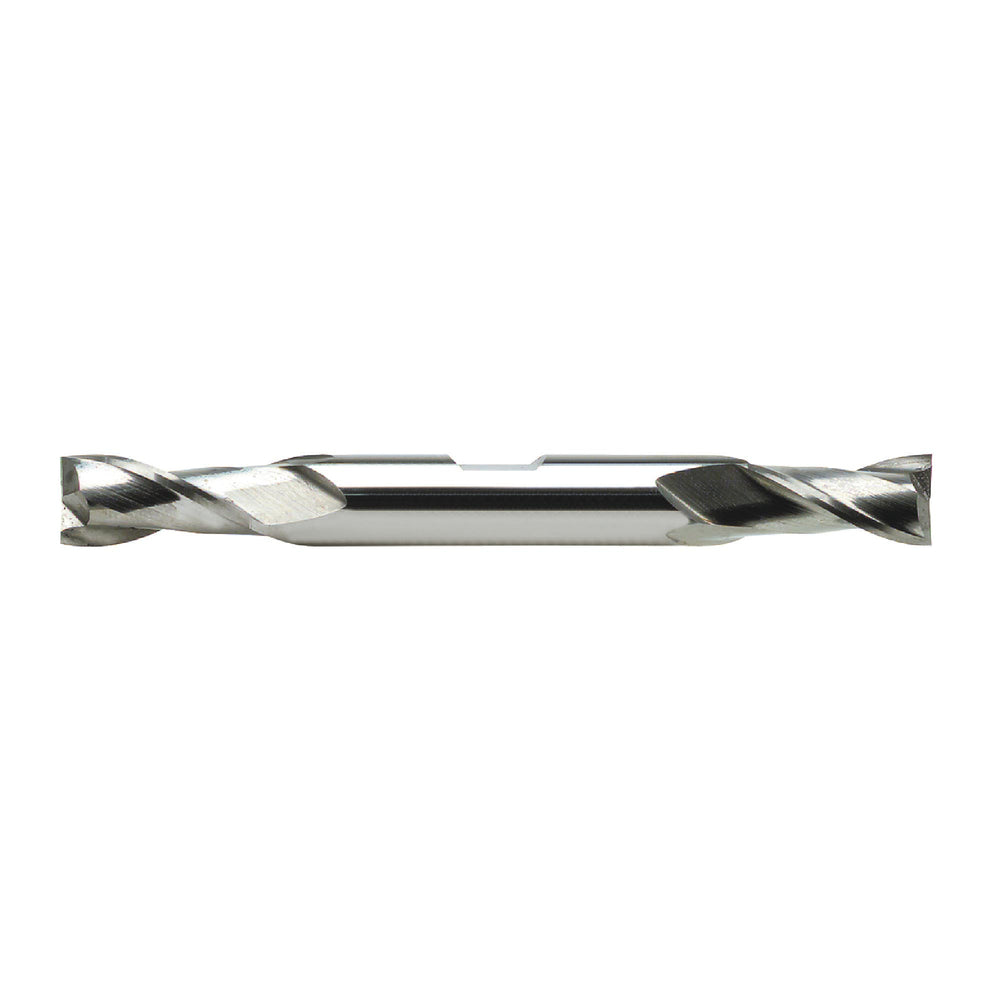

RUSHMORE USA 103132 3/8" Size, 3/4" LOC, 2 Flute, Solid Carbide 2 Flute Finishing End Mill

$68.13 USD
SKU 20-509-024
Product Specifications
Brand RUSHMORE USA
Shank Diameter 3/8"
Overall Length 3-1/2"
Finish Coating Bright
Size Type Fractional
Size 3/8"
No. of Flutes 2
Length of Cut 3/4"
Tool Material Solid Carbide
Single or Double End Double
Helix Angle 30°
Center Cutting Yes
Type 2 Flute Spiral Regular Length Micrograin Solid Carbide Double End Mill
Model # 103132
Cutting Direction Right Hand
First Choice For: Steel
Flute Shape Spiral Flute
Length Type Standard Length
Prop. 65 Yes
Series 1509
Tolerance_Cutting Diameter + .000"/ - .003"
Tolerance_Shank Diameter +.0000" / -.0005"
UNSPSC 27112803
Weight 0.175 lbs.
Workpiece Material Range Steel, Stainless Steel, High-Temp Exotic Alloys, Non-Ferrous, Cast Iron, Hard Materials, Plastics
Country of Origin UNITED STATES OF AMERICA

Prop 65 Warning

WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov

Longer shank diameter adds rigidity

Benefits

  • Smaller grains of carbide, provide tougher and stronger tool thus providing longer tool life and better surface finish.

Applications

  • For profiling, duplicating and contour milling on most materials.

Features

  • Longer length than stub length.
