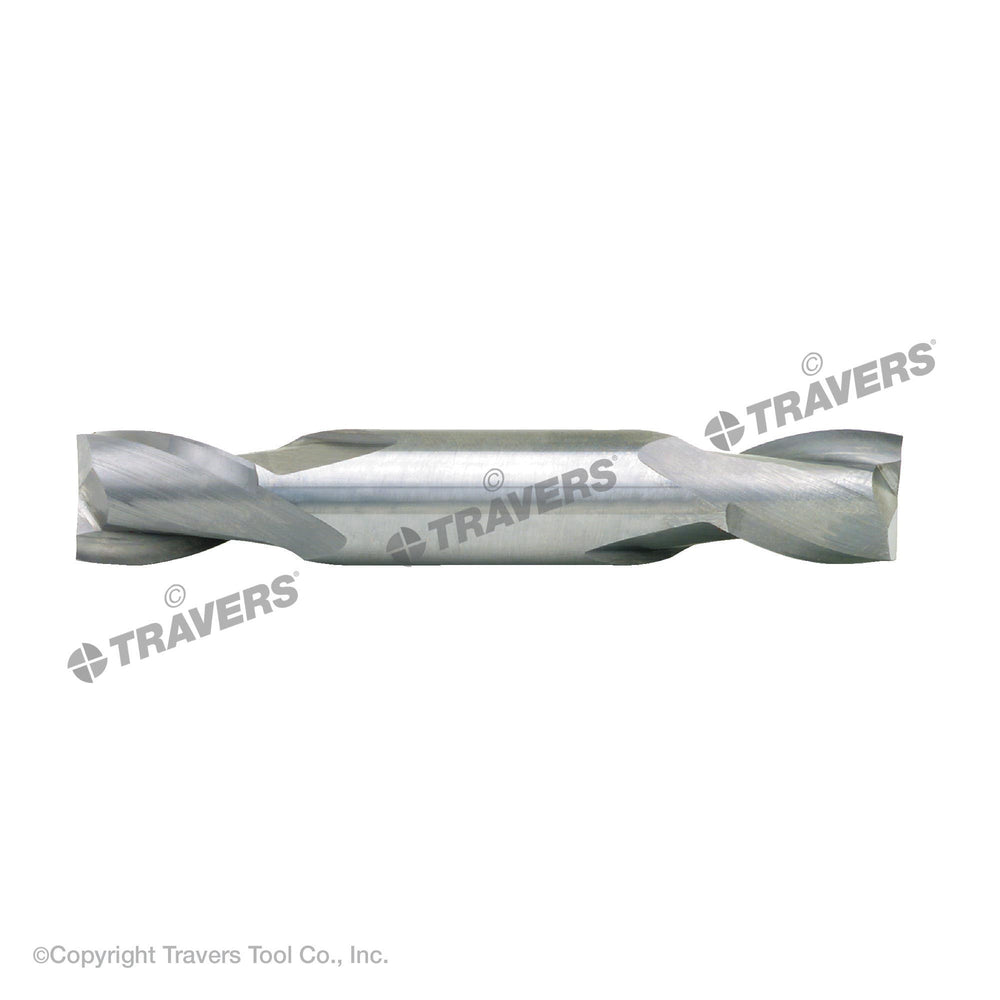

RUSHMORE USA 103108 1/4" Size, 1/2" LOC, 2 Flute, Solid Carbide 2 Flute Finishing End Mill
by Rushmore USA
$37.03 USD
SKU 20-508-216
| Product Specifications | |
|---|---|
| Brand | RUSHMORE USA |
| Shank Diameter | 1/4" |
| Overall Length | 2-1/2" |
| Finish Coating | Bright |
| Size Type | Fractional |
| Size | 1/4" |
| No. of Flutes | 2 |
| Length of Cut | 1/2" |
| Tool Material | Solid Carbide |
| Single or Double End | Double |
| Helix Angle | 30° |
| Center Cutting | Yes |
| Type | 2 Flute Stub Length Solid Carbide Double End Mill |
| End Type | Double |
| Model # | 103108 |
| Cutting Direction | Right Hand |
| First Choice For: | Steel |
| Flute Shape | Helix |
| Length Type | Stub Length |
| Prop. 65 | Yes |
| Series | 1508-2S |
| Tolerance_Cutting Diameter | +.000" / -.002" |
| Tolerance_Shank Diameter | + .0000" / -.0005" |
| UNSPSC | 27112803 |
| Weight | 0.06 lbs. |
| Workpiece Material Range | Steel, Stainless Steel, High-Temp Exotic Alloys, Non-Ferrous, Cast Iron, Hard Materials, Plastics |
| Country of Origin | UNITED STATES OF AMERICA |
WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Applications
- For profiling, duplicating and contour milling on most materials.
