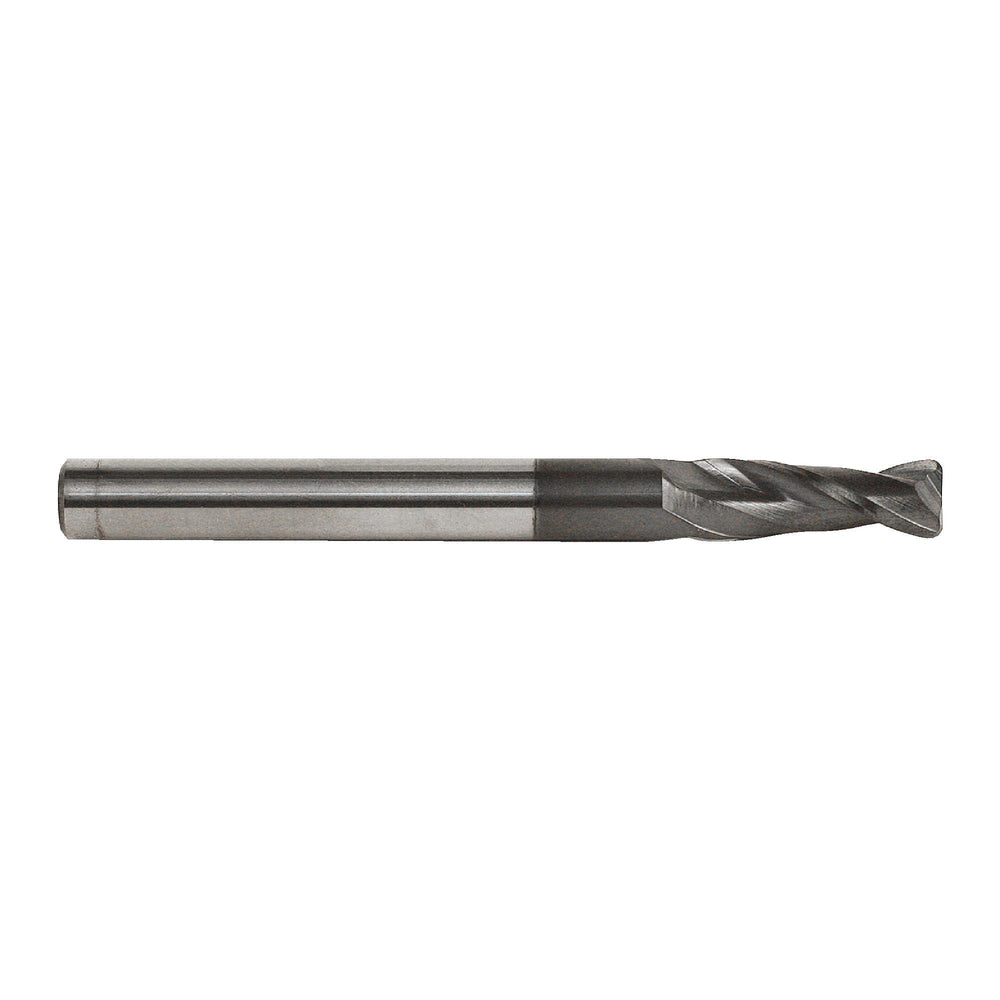

RUSHMORE USA 103077 5/8" Size, 1-1/4" LOC, 2 Flute, Solid Carbide 2 Flute Finishing End Mill
by Rushmore USA
$114.60 USD
SKU 20-504-862
| Product Specifications | |
|---|---|
| Brand | RUSHMORE USA |
| Shank Diameter | 5/8" |
| Overall Length | 3-1/2" |
| Finish Coating | AlTiN |
| Size Type | Fractional |
| Size | 5/8" |
| No. of Flutes | 2 |
| Length of Cut | 1-1/4" |
| Tool Material | Solid Carbide |
| Single or Double End | Single |
| Helix Angle | 30° |
| Center Cutting | Yes |
| Type | 2 flute solid carbide single end mill |
| Corner Radius | .090"-.093" |
| Radius_R | .090"-.093" |
| Model # | 103077 |
| Application | Used to produce a radius in the corner of a slot or pocket & 2 flutes provide increased chip evacuation capacity |
| Coating | ALTIN |
| Cutting Direction | Right Hand |
| First Choice For: | Stainless Steel |
| Flute Shape | Spiral Flute |
| Helix Direction | Right Hand |
| Prop. 65 | Yes |
| Shank Style | Straight Shank |
| Tolerance_Cutting Diameter | +0 / -.002" |
| Weight | 0.68 lbs. |
| Workpiece Material | For use on high temperature exotic materials & high cobalt & high nickel alloys. |
| Workpiece Material Range | Steel, Stainless Steel, High-Temp Exotic Alloys, Non-Ferrous, Cast Iron, Hard Materials, Plastics |
| Country of Origin | UNITED STATES OF AMERICA |
WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Corner radius allows more strength and minimizes chipping
Benefits
- Eliminates standard end mill alterations.
- AlTiN coating provides longer tool life and better performance on harder materials.
- 2 flutes allow for increased chip evacuation vs. 4 fluted end mills.
Applications
Used to produce a radius in the corner of a slot or pocket & 2 flutes provide increased chip evacuation capacityFeatures
- 2 flutes offer the greatest capacity of flute space for chip carry capacity.
