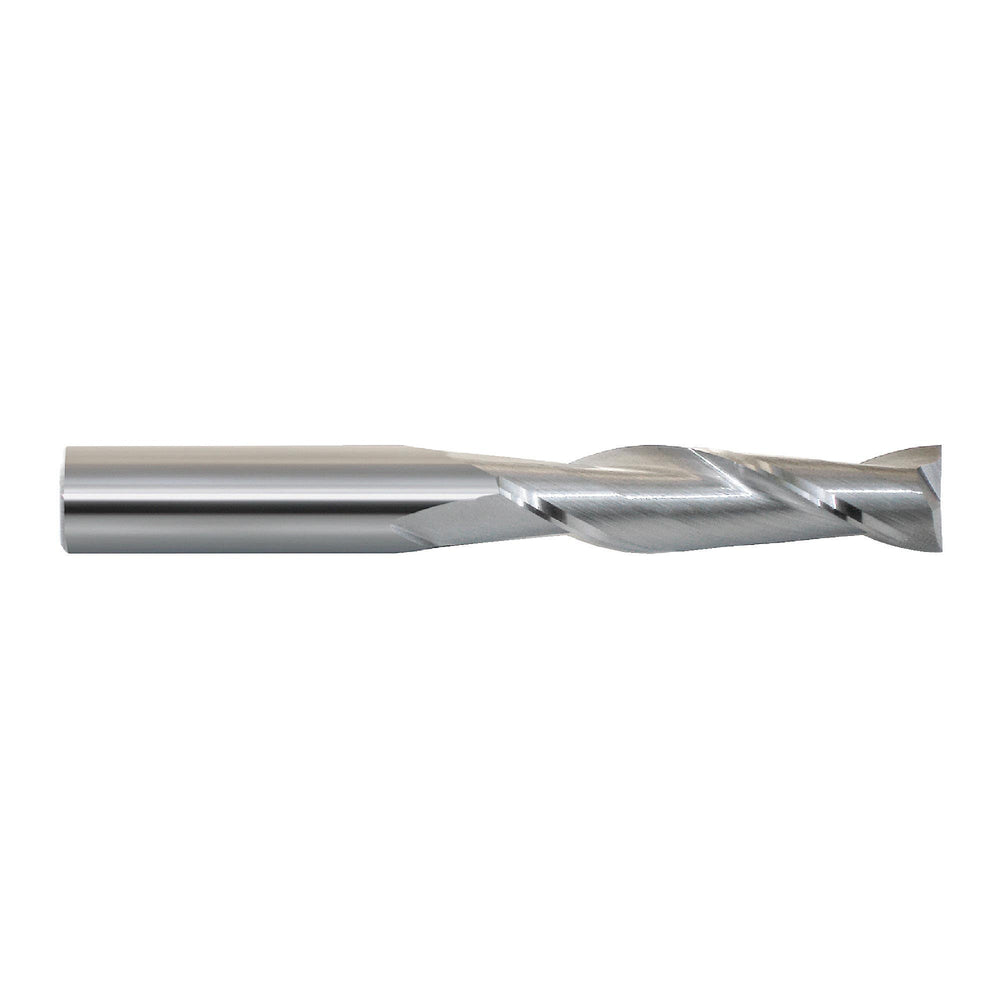

RUSHMORE USA 103021 1/8" Size, 1" LOC, 2 Flute, Solid Carbide 2 Flute Finishing End Mill
by Rushmore USA
$22.43
SKU 20-504-620
| Product Specifications | |
|---|---|
| Brand | RUSHMORE USA |
| Shank Diameter | 1/8" |
| Overall Length | 3" |
| Finish Coating | Bright |
| Size Type | Fractional |
| Size | 1/8" |
| No. of Flutes | 2 |
| Length of Cut | 1" |
| Tool Material | Solid Carbide |
| Single or Double End | Single |
| Helix Angle | 30° |
| Center Cutting | Yes |
| Type | 2 Flute Carbide Single End Mill |
| End Type | Square |
| Model # | 103021 |
| Application | Great for plunging, pocketing & slotting of non-ferrous materials where chip removal is needed. |
| Cutting Direction | Right Hand |
| First Choice For: | Steel |
| Flute Shape | Spiral Flute |
| Length Type | Extra Long |
| Nose Type | Square Nose |
| Prop. 65 | Yes |
| Shank Style | Straight Shank |
| Tolerance_Cutting Diameter | +.000" / -.002" |
| Tolerance_Shank Diameter | +.0000" / -.0005" |
| UNSPSC | 27112803 |
| Workpiece Material | Effective on cast iron, non-ferrous metals, plastics & abrasive materials. |
| Workpiece Material Range | Steel, Stainless Steel, High-Temp Exotic Alloys, Non-Ferrous, Cast Iron, Hard Materials, Plastics |
| Country of Origin | UNITED STATES OF AMERICA |
WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Long length provides access at greater depths
Benefits
TiAlN Coating
- Multi-layer coating used in wet, semi-dry and dry cutting of most steels and highly abrasive materials.
- Provides good thermal stability for increased speeds & feeds.
- Offers excellent heat resistance, good lubricity, better finishes & prolongs tool life.
Applications
Great for plunging, pocketing & slotting of non-ferrous materials where chip removal is needed.Features
- Two flute end mills contain the greatest capacity of flute space for chip carrying capacity.
- C-2 grade premium sub-micron grain carbide with 10% cobalt.
