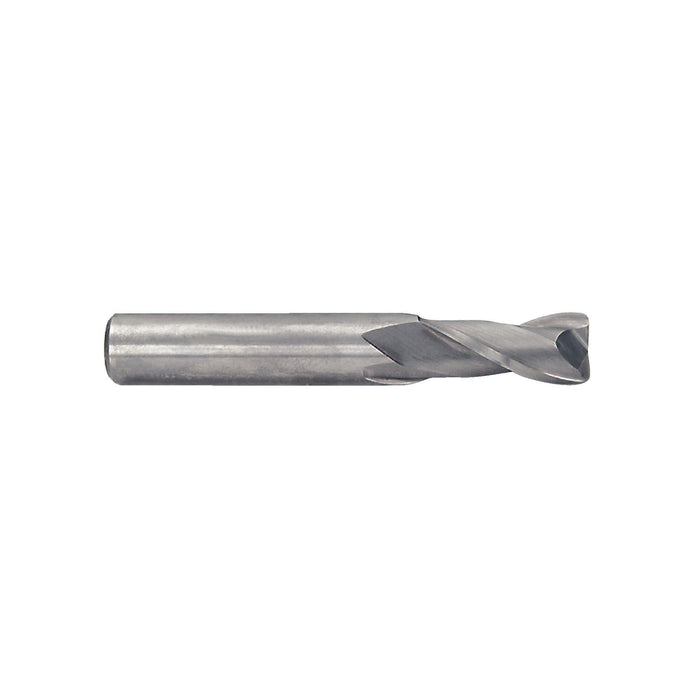

RUSHMORE USA 103007 1/2" Size, 1" LOC, 2 Flute, Solid Carbide 2 Flute Finishing End Mill
by Rushmore USA
$71.72 USD
SKU 20-504-434
| Product Specifications | |
|---|---|
| Brand | RUSHMORE USA |
| Shank Diameter | 1/2" |
| Overall Length | 3" |
| Finish Coating | Bright |
| Size Type | Fractional |
| Size | 1/2" |
| No. of Flutes | 2 |
| Length of Cut | 1" |
| Tool Material | Solid Carbide |
| Single or Double End | Single |
| Helix Angle | 30° |
| Center Cutting | Yes |
| Type | 2 Flute Solid Carbide Corner Radius Single End Mill |
| Corner Radius | .060" |
| Radius_R | .060" |
| End Type | Corner Radius Single End |
| Model # | 103007 |
| First Choice For: | Steel |
| Flute Shape | Spiral Flute |
| Prop. 65 | Yes |
| Shank Style | Straight Shank |
| Tolerance_Cutting Diameter | +.002/-.000 |
| Tolerance_Shank Diameter | -0.0001"/-0.0004" |
| UNSPSC | 27112803 |
| Weight | 0.26 lbs. |
| Workpiece Material Range | Steel, Stainless Steel, High-Temp Exotic Alloys, Non-Ferrous, Cast Iron, Hard Materials, Plastics |
| Country of Origin | UNITED STATES OF AMERICA |
WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Benefits
- Provides a strong corner on the end mill where a radius is permissible.
- Corner radius allows more strength and minimizes chipping.
- Eliminates standard end mill alterations.
- Longer tool life.
Applications
- Used to produce a radius in the corner of a slot or pocket.
Features
- 10% cobalt micrograin carbide.
