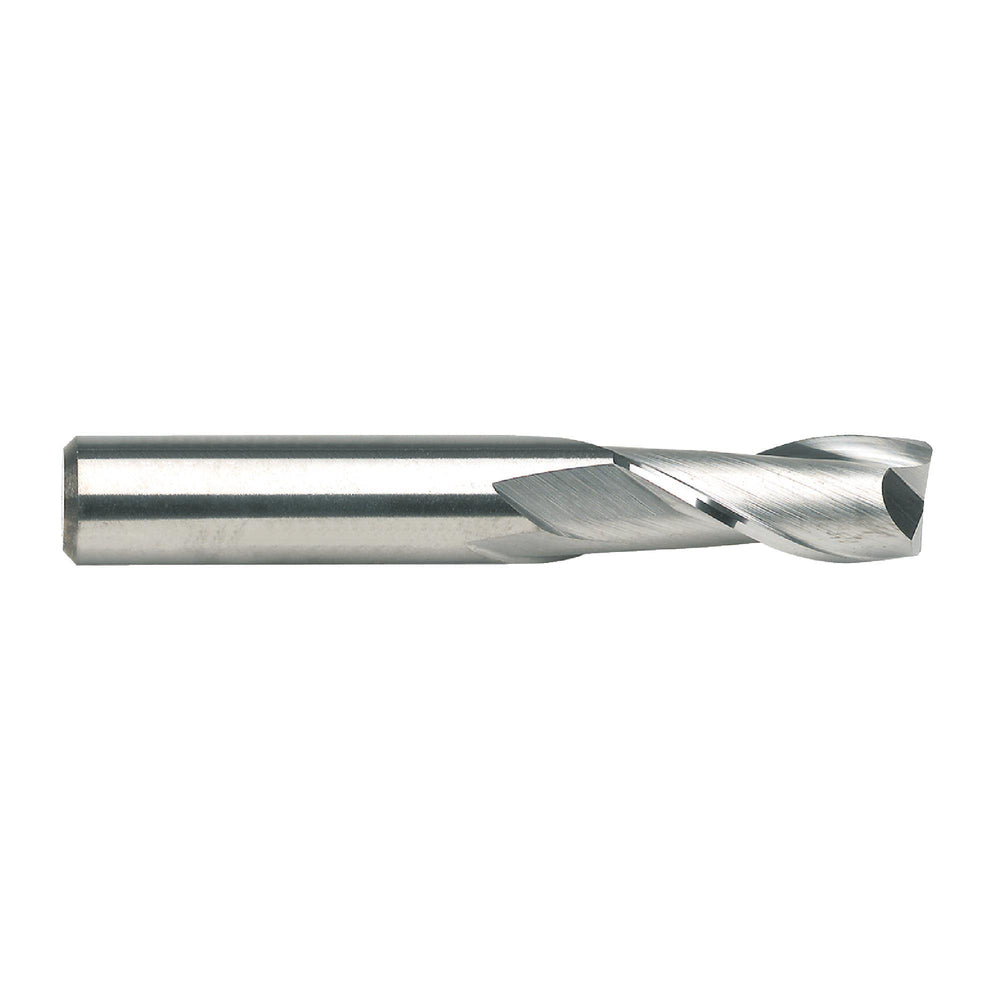

RUSHMORE USA 102955 1/16" Size, 3/16" LOC, 2 Flute, Solid Carbide 2 Flute Finishing End Mill
by Rushmore USA
$10.51 USD
SKU 20-504-004
| Product Specifications | |
|---|---|
| Brand | RUSHMORE USA |
| Shank Diameter | 1/8" |
| Overall Length | 1-1/2" |
| Finish Coating | Bright |
| Size Type | Fractional |
| Size | 1/16" |
| No. of Flutes | 2 |
| Length of Cut | 3/16" |
| Tool Material | Solid Carbide |
| Single or Double End | Single |
| Helix Angle | 30° |
| Center Cutting | Yes |
| Type | 2 Flute Micrograin Solid Carbide Single End Mill |
| Model # | 102955 |
| Cutting Direction | Right Hand |
| First Choice For: | Steel |
| Flute Shape | Spiral Flute |
| Prop. 65 | Yes |
| Series | 1504 |
| Shank Style | Straight Shank |
| TIR Maximum | .005" |
| Tolerance_Cutting Diameter | +.000" / -.002" |
| Tolerance_Shank Diameter | -.0000" / -.0005" |
| UNSPSC | 27112803 |
| Weight | 0.0166 lbs. |
| Workpiece Material Range | Steel, Stainless Steel, High-Temp Exotic Alloys, Non-Ferrous, Cast Iron, Hard Materials, Plastics |
| Country of Origin | UNITED STATES OF AMERICA |
WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Quality affordable American-made tooling
Applications
- For use on soft materials only.
