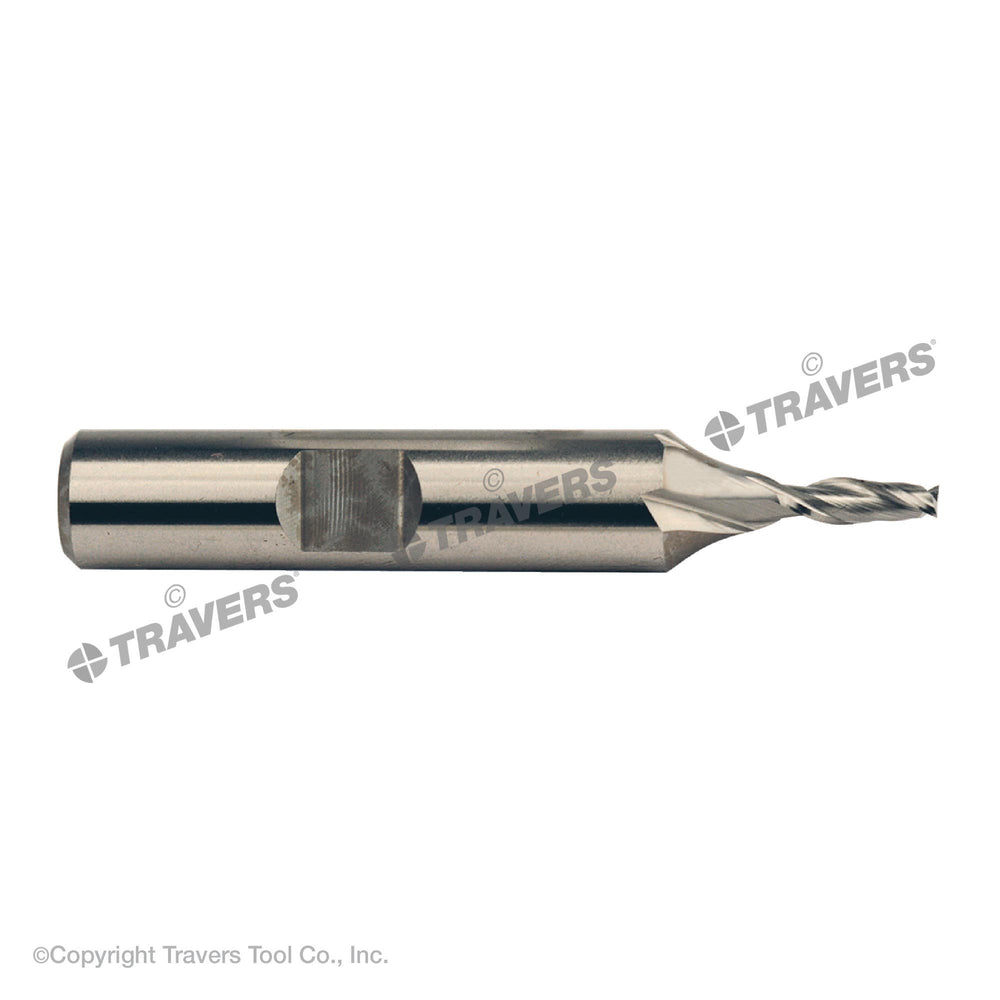

RUSHMORE USA 100775 1/4" Size, 1/2" LOC, 2 Flute, M42 8% Cobalt 2 Flute Finishing End Mill
by Rushmore USA
$15.26
SKU 08-310-040
| Product Specifications | |
|---|---|
| Brand | RUSHMORE USA |
| Shank Diameter | 3/8" |
| Overall Length | 2-5/16" |
| Finish Coating | Bright |
| Size Type | Fractional |
| Size | 1/4" |
| No. of Flutes | 2 |
| Length of Cut | 1/2" |
| Tool Material | M42 8% Cobalt |
| Single or Double End | Single |
| Helix Angle | 30° |
| Center Cutting | Yes |
| Type | 2 Flute M42 8% Cobalt Single End Mill |
| Model # | 100775 |
| Cutting Direction | Right Hand |
| First Choice For: | Steel |
| Flute Shape | Spiral Flute |
| Length Type | Standard Length |
| Prop. 65 | Yes |
| Shank Style | Straight Shank |
| Tolerance_Cutting Diameter | +.002/-.000" |
| UNSPSC | 27112803 |
| Weight | 0.16 lbs. |
| Workpiece Material Range | Steel, Stainless Steel, Non-Ferrous, Cast Iron, Plastics |
| Country of Origin | UNITED STATES OF AMERICA |
WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Recommended for milling abrasive, high strength & heat resistant exotic metals
Applications
- For general milling operations for slots, grooves and other similar features.
- Designed for use in machine tools.
Features
- Right hand (clockwise rotation) cutting direction.
- The spiral flute design permits a faster and smoother cutting action and the end mills are sized to provide a good cutting range while affording adequate rigidity.
- Higher speeds, increased feeds, easy resharpening.
- Great abrasive resistance and high red hardness.
- Longer tool life than ordinary high speed steel.
Technical Data
- Manufactured from M42 cobalt steel.
- Ground from the solid.
- Bright finish.
